How to Repair a Pixel 6 Screen: Step-By-Step Guide

Curated by

jenengevik

4 min read

968

According to iFixit, replacing the screen on a Google Pixel 6 is a moderately difficult repair that requires careful disassembly and reassembly of the device. The process involves removing the old screen, installing a new one, and potentially recalibrating the fingerprint sensor to maintain functionality.

Step #1: Prepare and Power Off

ifixit.com

Before beginning the screen replacement process for the Google Pixel 6, it's essential to prepare the device and gather the necessary tools. Here's a list of key steps and items needed:

Fully power off the phone and unplug any cables
1
2
Discharge the battery below 25% to reduce the risk of thermal events
1
2
Gather the following tools:
- Heated iOpener or similar heat source (e.g., hair dryer or heat gun)
  1
  2
- Suction handle or strong tape
  2
- Opening picks
  1
  2
- Tweezers
  1
- Torx T3 screwdriver
  3
- Replacement adhesive for the screen
  1
  2
Optional but helpful tools:
- Anti-Clamp tool for easier opening
  1
  2
- Plastic razor blade or metal razor blade (use with caution)
  4
Obtain a replacement screen, preferably with the frame and fingerprint reader attached
1
2
4

Before proceeding, ensure you have a clean, well-lit workspace and take necessary precautions to avoid damaging the device or injuring yourself during the repair process.

4 sources

Step #2: Remove Display Adhesive

ifixit.com

Using an opening pick or similar tool, carefully insert it into the gap created between the screen and the phone assembly. Slide the pick along the edges to slice through the adhesive holding the screen in place.

Be cautious not to insert the pick too deeply (only about 3-4 mm) to avoid damaging internal components or separating the screen from its safety frame.

Work your way around the entire perimeter of the device, leaving picks in place to prevent the adhesive from resealing. Pay special attention to the small plastic pins that also secure the screen, as these may require extra care when separating.

Once the adhesive is fully separated, carefully lift the screen assembly away from the phone body.

5 sources

Step #3: Disconnect Display Cable

ifixit.com

Step #3: Disconnect Display Cable and Remove Screen After loosening the adhesive and separating the screen from the phone body, the next crucial step is to disconnect the display cable and remove the screen. Here's a concise list of actions to take:

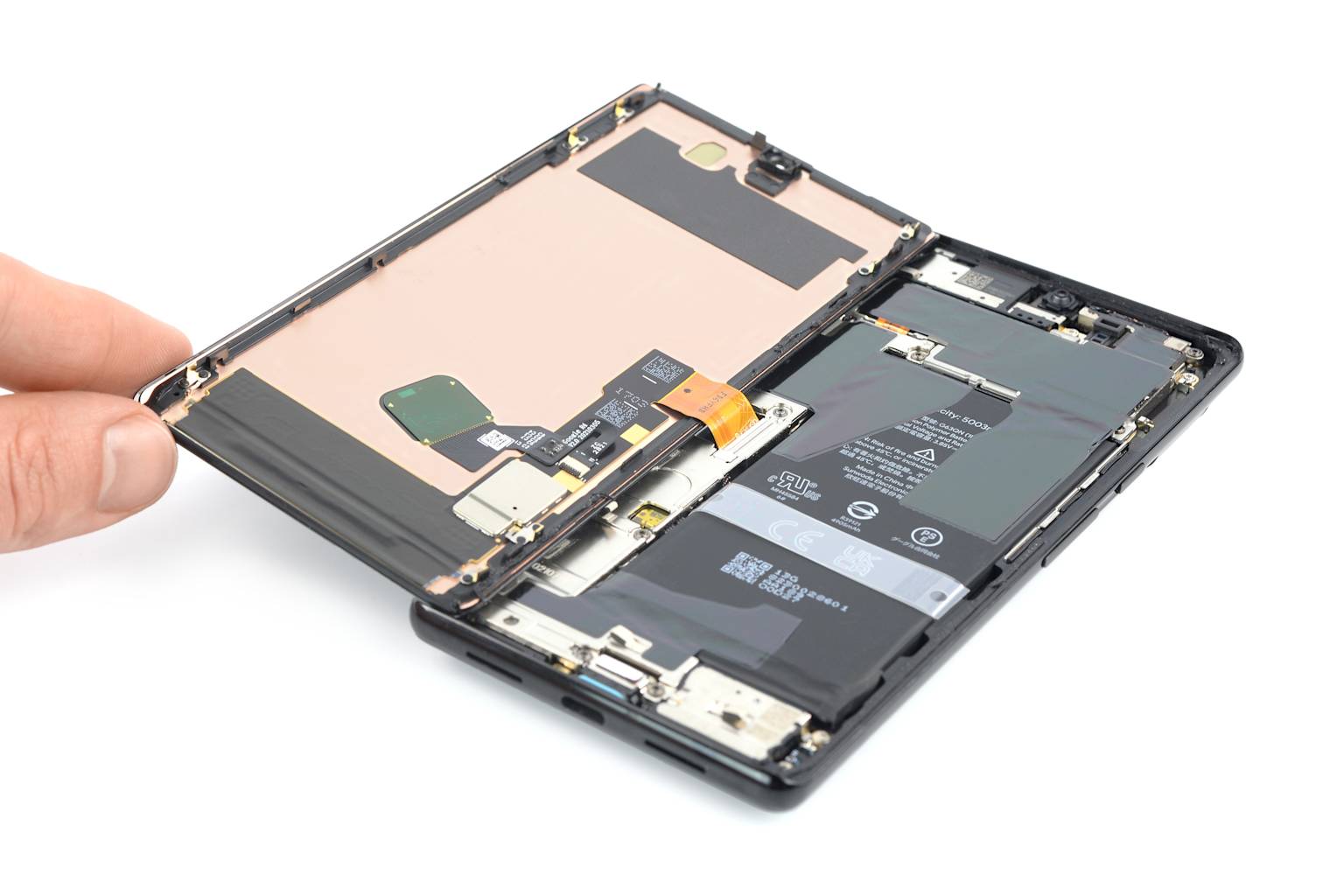

Carefully lift the screen like an open book, keeping it connected to the phone body
Locate the display cable connector on the left side of the device
Use tweezers to remove the metal bracket covering the display cable connector
1
2
Gently disconnect the display flex cable from its socket using a spudger or similar tool
1
2
Carefully remove the screen from the phone body
1
2
If replacing with a new screen, ensure it has the fingerprint sensor attached
2
Clean the frame edges thoroughly to prepare for the new screen installation
2

Remember to handle the components with care to avoid damaging the delicate connectors or other internal parts during this process.

2 sources

Step #4: Install New Screen

vopmart.com

Step #4: Install New Screen and Reconnect When installing the new screen for the Google Pixel 6, follow these key steps to ensure proper functionality:

Clean the frame edges thoroughly to remove any residual adhesive
1
Carefully place the new screen assembly onto the phone body
1
Reconnect the display flex cable to its socket on the motherboard
2
Secure the metal bracket over the display cable connector using tweezers
2
Verify that the fingerprint sensor is correctly positioned and connected
1
Power on the device to test the new screen before final assembly
1
If functional, apply new adhesive or double-sided tape around the frame edges
2
Gently press the screen into place, starting from the bottom and working towards the top
2
Use bonding clips or rubber bands to maintain pressure while the adhesive cures
2

Remember to handle the new screen with care and ensure all connections are secure before finalizing the installation. Proper alignment and connection of the fingerprint sensor are crucial for maintaining full device functionality.

2 sources

Step #5: Test and Reassemble

ifixit.com

After installing the new screen, it's crucial to test the device before final reassembly. Temporarily connect the screen, power on the phone, and verify that it functions correctly, including the display, touch sensitivity, and fingerprint sensor.

If any issues are detected, address them before proceeding. Once testing is complete, power off the device and disconnect the screen. Apply new adhesive to secure the screen permanently, ensuring water resistance is maintained as much as possible.

Carefully reassemble the device, applying gentle pressure along the edges to ensure a proper seal. Use bonding clips or rubber bands to maintain pressure during the adhesive curing process.

Finally, run a diagnostic test using the built-in Pixel Diagnostic tool to confirm all components are working correctly.

Remember that while this repair can restore functionality, it may affect the device's IP rating for water and dust resistance.

3 sources

Tutorials on How to Swap Out a Pixel 6 Screen (Videos)

youtube.com

Watch

youtube.com

Watch

Final Thoughts on Replacing Your Pixel 6 Screen

Replacing the screen on a Google Pixel 6 can be a cost-effective repair option compared to purchasing a new device. While DIY repair kits are available, many users opt for professional Google Pixel 6 Repair Services due to the complexity of the process. Companies like CPR Cell Phone Repair offer reliable display repair services, often at competitive repair prices

. When considering repair options, it's essential to weigh factors such as the quality of repairs, warranty coverage, and the potential impact on water resistance. While mall repair shops or the nearest repair location may offer convenience, authorized service centers typically ensure high-quality repairs using genuine parts. For those uncomfortable with full screen replacement, some repair shops may offer partial repairs for minor damage. Ultimately, whether choosing a professional repair shop or attempting a DIY repair, proper research and careful consideration of the repair services available will help ensure the best outcome for your Google Pixel 6.
