How to Safely Overclock Your GPU for Maximum Performance

Curated by

mranleec

5 min read

240

Overclocking your GPU means raising its core frequency above the standard settings to gain extra performance, which can lead to a 5-15% improvement in challenging games. However, this needs careful tuning of clock speeds, voltages, and power limits to prevent issues like overheating and damage to the hardware, as highlighted by Tom's Hardware.

Understanding GPU Overclocking

avast.com

Overclocking your GPU means cranking up the core frequency of your graphics card beyond its factory settings to squeeze out some extra performance. By tweaking clock speeds, voltages, and power limits, you can boost frame rates and enhance your gaming experience. This process lets gamers unlock the hidden potential of their graphics cards, often leading to a performance bump of around 5-15% in more demanding titles. But, there are some risks involved with GPU overclocking. Pushing your hardware too hard can result in more heat, higher power usage, and added stress on the components. If you go too far with the overclock or use unsafe voltage levels, you might face instability, crashes, or even damage to your GPU. So, it’s super important to be careful and keep an eye on temperatures and power limits. Taking it slow with stress tests and small adjustments is the way to go to find that perfect balance between performance and stability for your graphics card.

2 sources

GPU Overclocking Prerequisites

beebom.com

To overclock your GPU successfully, you need the right hardware, software, and knowledge. Here are the things you should have ready before you start:

Hardware:
1. A graphics card with overclocking potential
2. Adequate power supply unit (PSU) with sufficient wattage
3. Proper cooling solution (case fans, GPU cooler)
Software:
1. GPU overclocking tool (e.g., MSI Afterburner, ASUS GPU Tweak III)
2. Stress testing software (e.g., 3DMark, Unigine Heaven)
3. Temperature monitoring software
4. Up-to-date graphics drivers
Knowledge:
1. Understanding of core clock, memory clock, and voltage relationships
2. Familiarity with safe temperature ranges for your specific GPU
3. Knowledge of your GPU's stock settings and thermal limits
4. Awareness of the risks associated with overclocking

Meeting these requirements will make your overclocking safer and more effective, helping you get the best performance from your GPU while reducing risks

3 sources

Step-by-Step Overclocking Process

forum.corsair.com

Follow this easy guide to slowly boost your GPU's clock speeds and test how stable it is during overclocking:

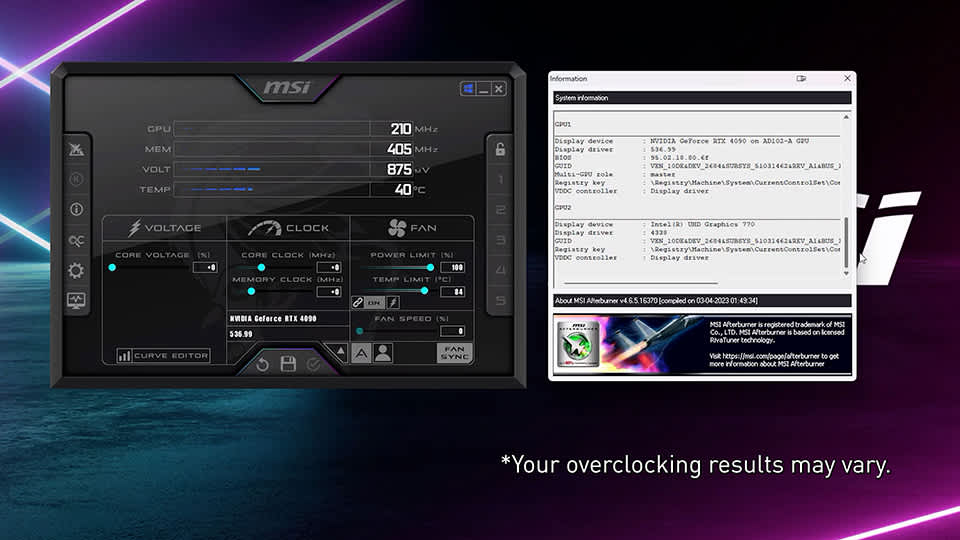

Start by launching your favorite overclocking tool, such as MSI Afterburner. This software lets you adjust core frequency, memory speeds, fan speeds, and power limits.
1
Set the power limit and thermal limit to their highest settings. This change allows your GPU to use more power for higher clock speeds and increases the temperature limit before it reduces performance.
1
2
Gradually increase the core clock speed by 10-25 MHz at a time. Begin with a cautious overclock and keep an eye on temperatures to ensure they stay below 80-85°C.
3
4
Perform stress tests like 3DMark or play resource-heavy games to check for stability. Watch for any artifacts, crashes, or drops in performance. If you see problems, lower the clock speeds a bit.
1
4
Once the core clock is stable, boost the memory clock in increments of 50-100 MHz. Test for stability after each adjustment, as memory overclocks can greatly enhance performance.
2
5
Adjust fan speeds to find a good balance between noise and cooling. Creating a custom fan curve can help keep temperatures and noise levels in check.
6
Keep making small tweaks and testing until you identify the highest stable overclock. This optimal setting provides the best performance boost without sacrificing reliability.
4
Finally, save your stable overclock settings and set the software to apply them automatically when you start your computer. Enjoy the improved frame rates and better gaming experience!
1
2

Take your time when overclocking. Each GPU has its own limits, so be patient in discovering what yours can handle. Keep an eye on important stats like clock speeds, power use, and temperatures. If you see any instability or strange readings, stop overclocking. With careful testing and patience, you can achieve a nice performance increase for your favorite games.

6 sources

Troubleshooting Common Overclocking Issues

Overclocking a GPU can enhance its performance, but it might also create some challenges. The table below outlines typical problems and their solutions:

Issue	Possible Cause	Solution
Crashes or freezes during gaming	Unstable overclock settings, insufficient power supply, overheating	Reduce clock speeds incrementally, ensure adequate PSU wattage, improve cooling with higher fan speeds or better case airflow 1 2
Visual artifacts or glitches on screen	Excessive memory or core clock speeds	Lower memory and core clocks until artifacts disappear, test stability with each adjustment 3 4
Poor performance gains after overclocking	Thermal throttling due to high temperatures, power limit bottleneck	Increase fan speeds, adjust fan curve for better cooling, raise power limit if available 1 5
Driver crashes or system instability	Unstable voltage or clock settings, outdated graphics drivers	Revert to stable settings, update to latest GPU drivers, check for conflicting overclocking software 2 6
Overclocking settings not applied on startup	Profile not saved or set to apply automatically	Save stable overclock profile, configure program to apply settings on startup or create shortcut with command line options 1 4

By carefully working through these challenges with gradual changes and thorough stability checks, you can determine the best overclock settings for your graphics card. Focus on balancing performance improvements with system stability, temperature control, and noise levels to ensure a top-notch gaming experience while maintaining hardware health.

6 sources

Monitoring and Maintaining Your Overclocked GPU

videocardz.com

Keeping an overclocked GPU running well needs regular care to make sure it performs at its best and lasts longer. Here are some tips for checking and looking after your overclocked graphics card:

Make it a habit to monitor your GPU's temperature, clock speeds, and voltages using software like MSI Afterburner or GPU-Z during your gaming sessions
1
.
Always keep your graphics drivers updated for the best compatibility with new games and to ensure stability
2
.
Regularly clean your GPU and case to prevent dust from affecting cooling performance
3
.
Stress test your overclock settings occasionally to check their stability
4
.
Adjust your fan settings according to the seasons to adapt to temperature changes
5
.
Consider undervolting your GPU to lower power use and heat while still keeping good performance
6
.
Keep an eye on frame rates in your favorite games to ensure your overclock is delivering the expected boost
7
.
Be ready to lower your overclocks as your GPU ages, as it may become less stable over time
8
.

If you want to enjoy the benefits of your GPU overclock while also protecting your graphics card, stick to these practices. The main point for a successful long-term overclock is to find a good balance between better performance and less strain on your hardware.

8 sources

Closing Thoughts on How to Safely Overclock Your GPU for Maximum Performance

Overclocking your GPU can be a rewarding way to boost gaming performance and squeeze extra frames out of your graphics card. However, it's crucial to balance the desire for increased processing power with the need to maintain safe voltages and manage heat output. Effective fan control is essential for keeping GPU temperatures in check, as overclocking inevitably leads to higher power consumption and heat generation. While the potential for improved gaming performance is enticing, it's important to remember that even small increases in clock speeds can significantly impact power consumption and heat output. Always prioritize using safe voltages and closely monitor your GPU temperature to ensure longevity. With careful tuning and proper fan control, you can often achieve a sweet spot of extra frames and enhanced processing power without pushing your graphics card beyond its limits. Ultimately, successful GPU overclocking is about finding the right balance between performance gains and system stability.
